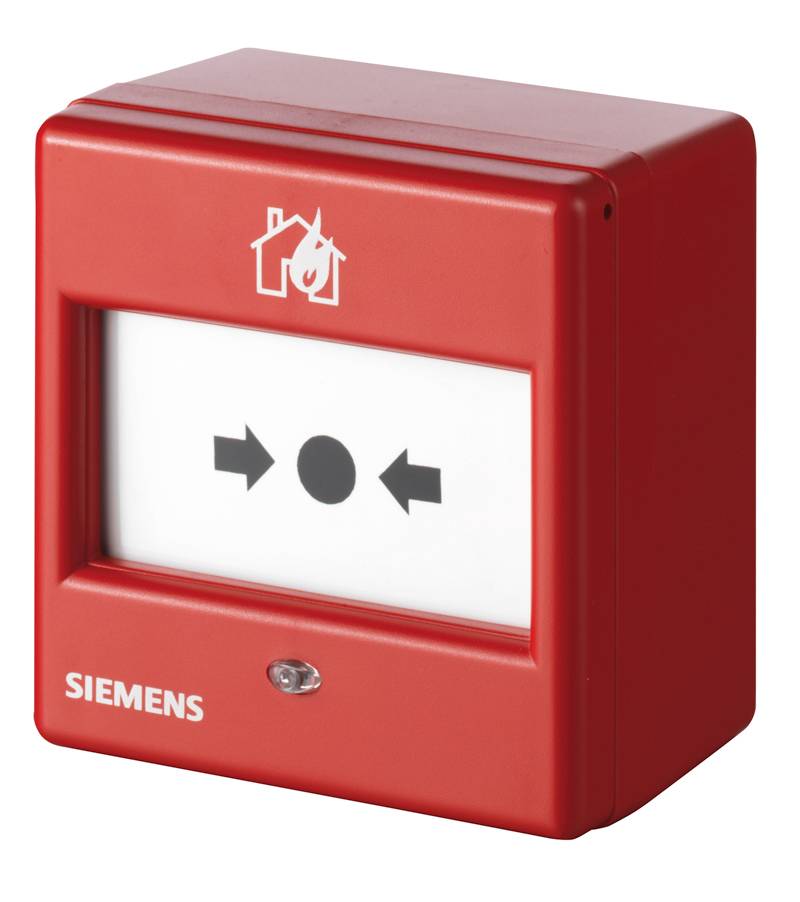

    Manual Alarm Button-Plastic – FDM225-RP
    Product Features

    For immediate manual activation of a fire alarm.

    For indoor applications.

    Direct alarm actuation by pressing the plastic element.

    It is reset with the button button and the device becomes ready to work again.

    For surface and flush mounted supply lines in easily accessible locations.

    Back box FDMH295-x must be ordered separately for surface mounting.

    Technicial Specifications
    • Operating voltage DC 12…33 V
    • Operating temperature -25…70 °C
    • Protection category IP44
    • Relative humidity ≤95 % rel. (no condensation)
    • Standard EN 54-11 , EN 54-17
    • Dimensions (W x H x D) 87 x 87 x 20 mm
    • Quiescent current 180 μA
    • Storage temperature -30...+75 °C
    • Terminal block 0,28…1,5 mm2
    • Communication protocol FDnet/C-NET
    • Color Flame red, ~RAL 3000
    • System compatibility FDnet -> FS20, AlgoRex, SIGMASYS C-NET -> FS720
    • Accessories FDMH295-R Back box , FDMH295-S Back box with 2 entries , FDMC295 Protective cover
