Warehouse Fire Detection System

Warehouses are structures where a fire grows the fastest and is extinguished with the most difficulty. High ceilings, shelving systems rising meters high, densely stacked flammable materials, and large open volumes make the warehouse an environment where standard building fire solutions are insufficient. A point smoke detector placed on the ceiling in a warehouse, based on an office logic, often fails to detect a fire.

As Dijinet, since 1985, we have been designing fire detection systems suitable for the specific conditions of logistics warehouses, bonded warehouses, cold storage facilities, and factory storages. On this page, we discuss why warehouses are special and how to install the correct system.

What Makes a Warehouse Special in Terms of Fire?

• High ceiling: As smoke rises, it cools and disperses; a point detector cannot detect the weak smoke reaching the ceiling.
• High fire load: Materials like cardboard, packaging, plastic, textiles are densely stacked; fires grow very quickly.
• High rack stacking: Narrow aisles between racks and vertical spread rapidly carry fire between levels.
• Large open volume: A single fire zone can be very large; zoning must be done carefully.
• Low personnel: People are not constantly present in the warehouse; early and automatic detection is critical.
• Special storage conditions: Cold storage, chemical or flammable material warehouses require additional risk assessment and special solutions.

Main Solution: Beam Type Smoke Detector

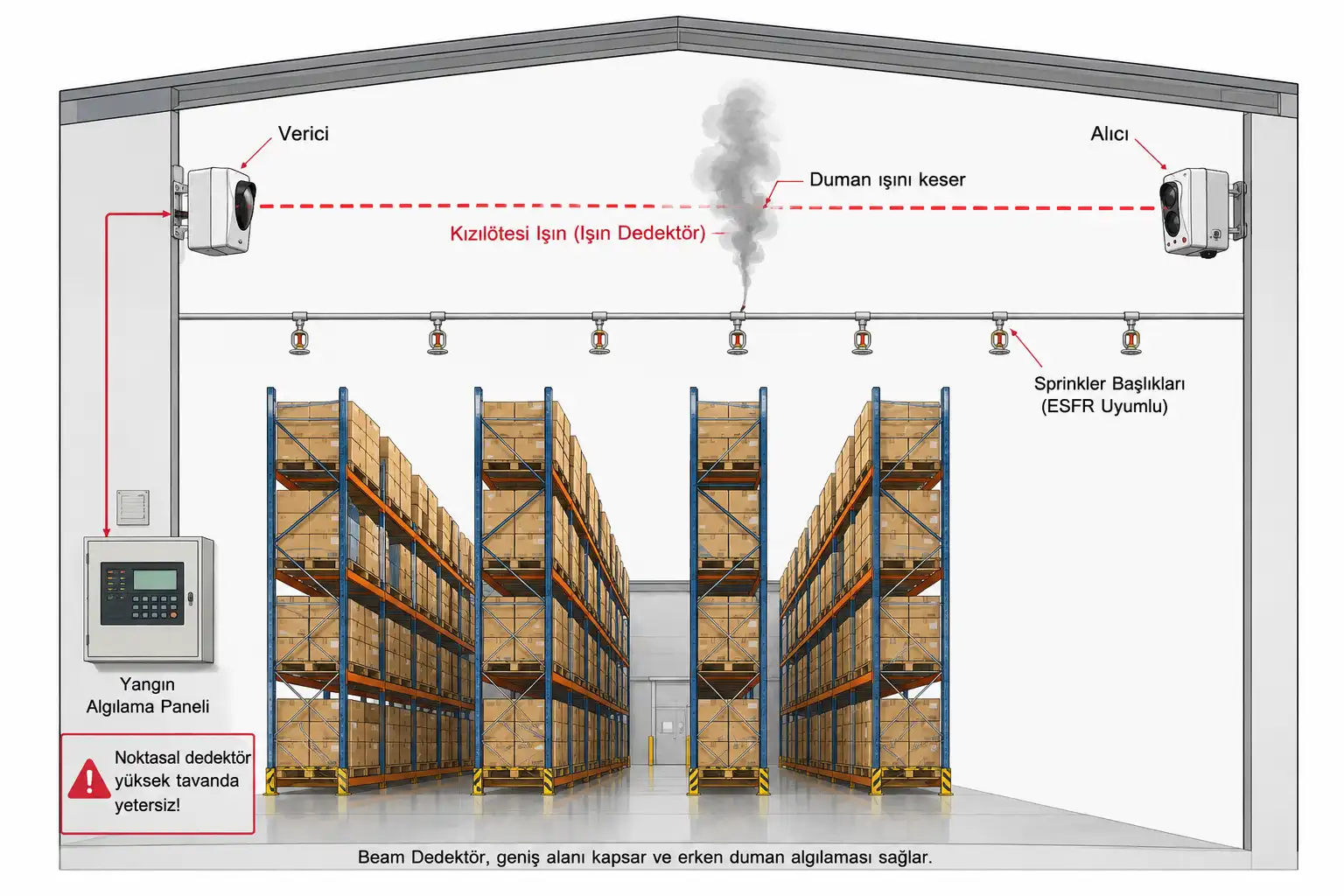

In high-ceiling warehouses, the main detection solution is a beam-type smoke detector, not a spot detector. This system creates an invisible infrared beam between a transmitter at one end of the warehouse and a receiver (or reflector) at the other end. When rising smoke enters the path of this beam, the light reaching the receiver decreases, and an alarm is triggered.

Why is a Beam Detector the Right Solution for Warehouses?

• Protects high ceilings: Works effectively in ceilings 12 meters and above, where spot detectors are insufficient.
• Covers a large area with a single pair: A single transmitter-receiver pair monitors a long warehouse line from end to end.
• Easy installation and maintenance: Devices are mounted on walls/columns; there’s no need to hang individual detectors from high ceilings.
• Suitable for dirty/dusty environments: Resistant to warehouse conditions.

You can refer to our detector guide for the general operating principle of beam detectors and other detector types:

• Fire Detector and Smoke Detector — all types, including beam type

High Rack and Stacking: Intermediate Level Protection

In very high racking systems (especially in automated/high-altitude warehouses), ceiling-level detection alone may not be sufficient. If a fire starts within the rack, valuable minutes are lost until smoke reaches the ceiling. In such warehouses, in-rack detection and suppression solutions are considered.

• In-rack sprinklers: Sprinkler heads placed within the racks at specific height intervals.
• Intermediate level detection: Detection placed at intermediate levels in high racks.
• Corridor-based zoning: Designing rack aisles as separate fire zones.

Sprinkler and Suppression Monitoring (ESFR)

In high warehouses, fire detection often works in conjunction with automatic suppression systems. ESFR (Early Suppression Fast Response) sprinkler systems are specifically developed for high-rack warehouses and aim to suppress fires early within the racks.

Here, Dijinet’s role is clear: We are on the detection and monitoring side. The fire detection system can monitor the status of sprinkler and extinguishing systems (flow, pressure, valve position) and report to the panel when activated. The extinguishing system itself is a separate area of expertise; its integration with the detection system is designed during project planning.

• How is a Fire Alarm System Designed?

Special Warehouse Types and Solutions

You can also find additional information for facilities with high concentrations of flammable and chemical substances on our factory page:

• Factory Fire Detection and Alarm Systems

Which System for a Warehouse: Conventional or Addressable?

In a small, single-volume warehouse, a conventional system may suffice. However, in multi-compartment, high-rack, or bonded warehouses requiring record-keeping, an addressable system is preferred; because knowing the exact zone or corridor from which the alarm originated determines the intervention time in a large warehouse.

• Addressable Fire Detection Systems
• Fire Notification Systems (siren, flasher, voice evacuation)

Why Dijinet for Warehouse Projects?

• Solution for high volume: We correctly design beam detectors, rack protection, and extinguishing system monitoring.
• End-to-end service: Site survey, project design, installation, commissioning, and maintenance from a single source.
• Team knowledgeable in regulations: Projects compliant with BYKHY and EN 54 requirements, ready for approval.
• Experience since 1985: Field expertise in different warehouse types.

Frequently Asked Questions

Which detector is used in a high-ceiling warehouse?

In warehouses with high ceilings, spot smoke detectors are insufficient; the primary solution is a beam-type smoke detector. With a mutual transmitter-receiver pair, it monitors a large area on a single line and can detect smoke at high ceilings.

Why isn’t a normal smoke detector sufficient for a warehouse?

Smoke cools and disperses (stratification) before reaching high ceilings. For this reason, a spot detector placed on the ceiling detects weakened smoke late or not at all. In high volumes, beam detectors or aspirating systems are used.

Does a fire system work in a cold storage warehouse?

Standard spot detectors may experience issues at low temperatures and with condensation. In cold storage warehouses, heated or special detectors suitable for low temperatures are used; the solution is designed according to the warehouse temperature.

Does the warehouse fire system work with sprinklers?

In high-rack warehouses, detection is usually designed in conjunction with suppression systems like ESFR sprinklers. Dijinet undertakes the detection and monitoring side; the status of the suppression system can be monitored from the panel, and integration is planned during the design phase.

Is fire detection mandatory in a bonded warehouse?

Bonded warehouses and customs warehouses have fire detection systems due to both fire regulations and inspection requirements. Reportable, addressable systems are preferred in these warehouses. The exact requirement is determined by the nature of the structure.
